yyj-1 plastic pipe marking printer

yyj-1 plastic pipe marking printer
yyj-1 plastic pipe marking printer

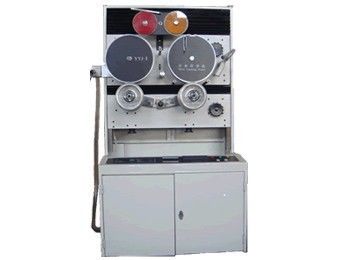

تصویر بزرگ :  yyj-1 plastic pipe marking printer

جزئیات محصول:
توضیحات محصول جزئیات
برجسته کردن:

meter printer,pipe meter printer

,

pipe meter printer

Applications:
Meter printer is the necessary equipment for production in wire and cable industry. The type of YYJ-1 meter printer with accurate meter and reliable performance produced by our company is the passive hot-press printing. The script printed on the external diamter of cable uses the method of hot-press printing to press the coating on the ribbon to the outer diameter of cable. The meter can print the out-of-factory name, trademark, model, etc,which is better than the ink printing mode, and is the updated product of ink printing type meter printer.
Specifications:

  • Accurate Meter : the speed-ration of meter wheel and printing wheel is 1:1, which can ensure meter accurancy is within ±0.3%;
  • Hot-press printing ribbon printing, clear script, good adhesion, not apt to erase and superior to the ink printing method;
  • Meter figures of printing alphabet blocks adopt electric heating and temperature control regulation system is equipped for convenient adjustment, high precision of temperature control and stable printing quality;
  • Easy operation and use, it can replace ink printer.

Main Technical Parameters
Rated voltage380V
Rated Frequency50Hz
Application Cable Diameterφ8-100mm
Meter Accuracy±0.3%
Heating Power0.4KW
Temperature Control Accuracy±0.5℃
Vortex Pump Power1.1KW
Machine noise≤85dB(A)
Dimension900×540×1550mm
